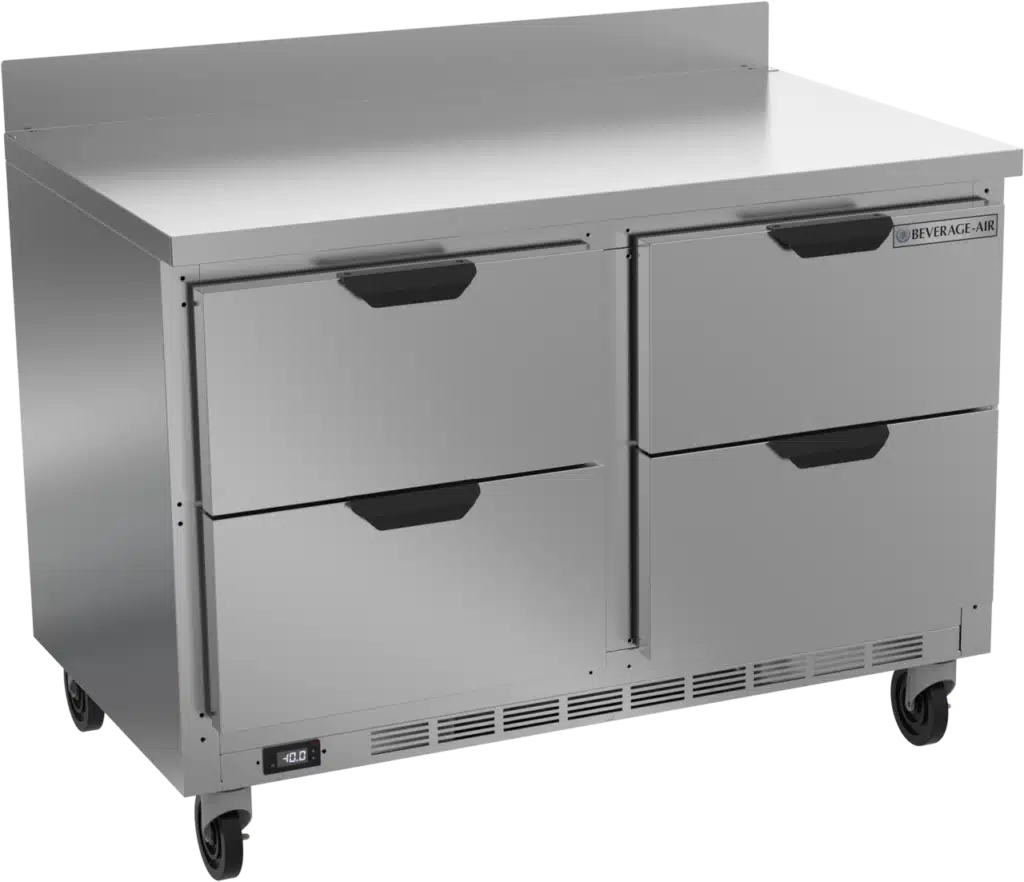

Beverage Air Worktop Freezer
Worktops

Beverage Air Worktop Freezer

Model / SKU
WTFD48HC-4
01Warranty
  • Seven (7) Years Parts and Labor Warranty (Excludes Maintenance Items)
  • Seven (7) Years Compressor Warranty (Part Only)
02Documents
03Maintenance schedule
Daily
  • Exterior Cleaning
  1. Wash with a clean sponge and a mild detergent that does not contain chlorine.
  2. Rinse with clean water.
  3. Dry with a soft cloth.
  4. Polish with a soft cloth, wiping with the grain.
  5. Wipe weekly with stainless steel cleaner.
  • Inspect gaskets & check that hinges are tight to the cabinet
Weekly
  • Interior Cleaning
  1. Remove all food, food related items and shelves. Store the food at a safe temperature.
  2. Disconnect power to the unit (unplug it or switch the breaker off).
  3. Remove all loose food particles from the inside walls, floor, door liner and ceiling.
  4. Scrub all interior surfaces and door gaskets with a warm (100° F to 110° F) detergent solution and a soft scrub brush.
  5. Rinse with clean water and allow to air dry.
  6. Return the shelves to the unit and secure them.
  7. Restore power.
  8. Return food to the unit when it has reached a safe temperature.
Monthly
  • Manual Defrost *IF NECESSARY
  • The freezer will automatically defrost as needed, there is no set time for defrost. If a manual defrost is needed, push and immediately release the "melting" or defrost button.
  • *NOTE: Holding the defrost button in too long will shut the controller off.
Quarterly
  • Clean condenser coil (Preventative Maintenance Company Recommended)
  1. Unplug unit from power supply.
  2. Remove the Phillips head screws at the top of the panel.
  3. Once the screws have been removed the you can lower the panel.
  • Please note the electrical cord will still be connected to the panel.
  1. Examine condenser surface, if dusty, brush and vacuum the dust and lint from the surface of the coil. Brush up and down to avoid damaging the fins. Use care to not disturb the wires connected to the controller.
  • Note: If the coil is greasy, the coil will need to be cleaned with coil cleaner and that should be left to an experienced technician.
  1. After the condenser is clean, return the grille panel to the unit.
  2. To reinstall the rear panel line up the bottom of the panel to the bottom of the unit keeping the screw holes lined up on the panel and on the unit.
  3. Reinstall the Phillips head screw.
  4. Note: Air filters are not recommended as they restrict the flow of cooling air.
Annually
  • Preventative Maintenance Appointment Recommended
