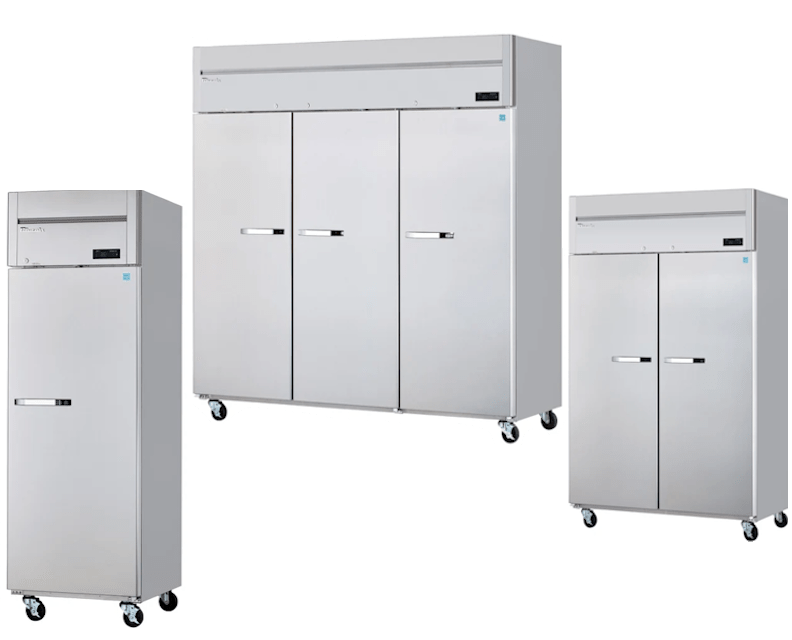

Blue Air Reach-In Freezer
Reach-Ins

Blue Air Reach-In Freezer

Model / SKU
BSF23T-HCBSF49T-HCBSF72T-HC
⚠  To reduce the risk of electric shock, unplug before cleaning or service.
01Warranty
  • Purchased Before February/2023: 3 yrs parts and labor, 5 yrs compressor
  • Purchased After February/2023: 5 yrs parts and labor, 7 yrs compressor
02Documents
03Maintenance schedule
Daily
  • *To reduce the risk of electric shock, unplug before cleaning or service.*
  • Cleaning the gasket
  • The door gasket should be cleaned frequently to maintain proper sealing.
  • Use warm water and a mild soap.
  • NOTE: Do not remove the gaskets frequently for cleaning, as repeated removal can cause them to wear out prematurely. Over time, worn gaskets may no longer seal properly, allowing warm air to enter the unit. This can lead to temperature issues and, in some cases, ice buildup on the evaporator coil.
Monthly
  • *To reduce the risk of electric shock, unplug before cleaning or service.*
  • The interior and exterior of the unit can be cleaned using warm water with soap.
  • *Do not use an abrasive cleaner because it will scratch the surface.*
  • Check door alignment
Quarterly
  • *To reduce the risk of electric shock, unplug before cleaning or service.*
  • Clean the condenser coils with a soft brush and vacuum debris.
  • NOTE: The cleaning frequency may vary depending on the environment of the unit, as some locations will cause the condenser coil to accumulate dirt and debris more quickly than others.
  • *Please make sure to refer to Owner's Manual for more specific instruction*
Bi-Annually
  • Clean the cabinet
  • 1. Cleaning the interior and exterior
  • The interior and exterior of the unit can be cleaned using warm water with soap.
  • Do not use an abrasive cleaner because it will scratch the surface.
  • 2. Cleaning the gasket
  • The door gasket should be cleaned frequently to maintain proper sealing.
  • Use warm water and a mild soap.
  • 3. Cleaning the evaporator
  • If you need to clean the evaporator, please contact the qualified service technicians.
  • 4. Check after cleaning
  • Check the unit again for safety.
  • Check if the unit is operating properly.
Annually
  • Clean the evaporator *IF NECESSARY (PM Service company recommended)
  • *The evaporator coil does not require routine cleaning. However, ice can occasionally build up on the evaporator coil, which will prevent the unit from operating properly.
  • If the evaporator coil becomes iced over, turn the unit off and allow the ice to thaw naturally. Leave the unit powered off until the ice has completely melted. Allow service technician to accurately diagnose the root cause of the issue
  • Preventative Maintenance Appointment Recommended
